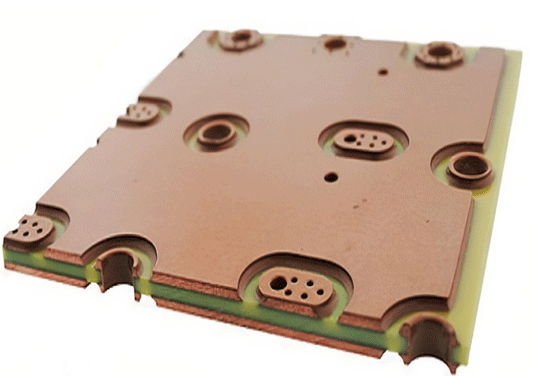

What is copper plating in PCB

 If the PCB has more ground, there are SGND, AGND, If the PCB has furtherground., depending on the position of the PCB surface, the main" ground"is used as the reference for independent copper coating, that is, the ground is connected together.

Copper Wrap Plating Structures

Filled via-in- pad structures bear via holes be copper plated in order to route signals between layers in a multilayer PCB. This plating connects to other pads in via-in- pad structures, as well as directly to a trace using a small annular ring. These structures are necessary, but they're known to have some trustability problems under repeated thermal cycling.

The IPC 6012E norms lately added a copper serape plating demand to via-in- pad structures. The filled copper plating should continue around the edge of the via hole and extend onto the annular ring girding the via pad. This demand improves the trustability of the via plating and has the implicit to reduce failures due to cracks, or due to the separation between face features and the plated via hole.

Filled copper serape structures appear in two kinds. First, a nonstop copper film can be applied to the inside of a via, which also wraps over the top and nethermost layers at the ends of the via. This copper serape plating also forms the via pad and trace leading to the via, creating a nonstop copper structure.

Alternately, the via can have its own separate pad formed around the ends of the via. This separate pad subcaste connects to traces or ground aeroplanes. The  copper plating that fills the via also wraps over the top of this external pad, forming a butt joint between the copper fill plating and the via pad. Some cling occurs between the filler plating and the via pad, but the two don't fuse together and don't form a single nonstop structure.

There are several reasons for copper plating

1. EMC. For a large area of ground or power copper, it'll shield, and some special, similar as PGND to cover.

2. PCB process conditions. Generally, in order to insure the plating effect, or the laminate isn't misshaped, copper is laid for the PCB subcaste with lower wiring.

3. Signal integrity conditions, give a high- frequence digital signal a complete return path, and reduce the wiring of the DC network. Of course, there are heat dispersion, special device installation requires copper plating and so on.

A major advantage of copper plating is to reduce the ground line impedance (the so- calledanti-interference is also caused by a large part of the ground line impedance reduction). There are a lot of shaft currents in the digital circuit, so it's further necessary to reduce the ground line impedance. It's generally believed that circuits composed entirely of digital bias should be predicated over a large area, and for analog circuits, the ground circle formed by copper plating may beget electromagnetic coupling hindrance to be inferior (except for high frequence circuits). Thus, it isn't a circuit that has to be  copper (BTW snare copper is better than the whole block).

The significance of circuit copper plating

1. copper and ground line connected, this can reduce the circle area

2. the large area of copper plating is original to reducing the resistance of the ground line, reducing the pressure drop from these two points It's said that both digital ground and analog ground should be copper to increase theanti-interference capability, and at high frequentness, the digital ground and the analog ground should be separated to lay copper, and also connected by a single point, the single point can Use a line to make a many turns on a glamorous ring and also connect. Still, if the frequence isn't too high, or the working conditions of the instrument aren't bad, you can relax fairly. The demitasse can be counted as a high- frequence source in the circuit. You can place copper around and base the demitasse case, which is better.
